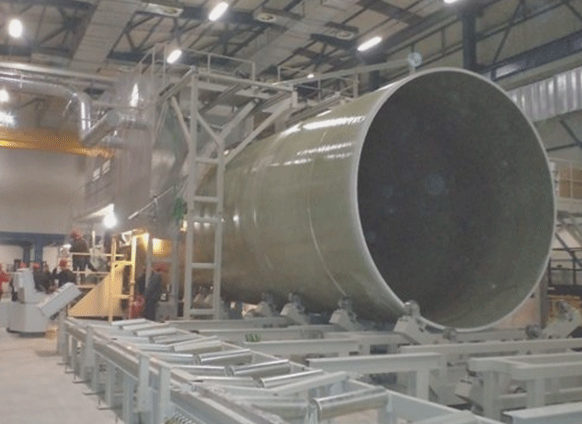

Home Products CRPM:Continious Reinforced Piping Machines CRPM 300 - 3000 Winder




Winder Capacity:
Production Diameter ND 300 up to ND 3400 (Pipes and Couplings)

Area and Height required:
Width = 11,5 m : Length = 27 m : Height = 7 m (under crane hook)

Utilities Requirements:

Electricity

Requirement Voltage: 380-400 V AC, 3 phase, 50 Hz

Installed Power: 413 kW

Compressed Air

7 bar, 8,2 m3 / min

Crucial parts of CRPM Winder

Main Body, Shafts, Cam, Steel band Guidance and Tensioning, Mandrel Disks, Aluminium Rails, Returnheads, Steel band reel, Feeding Chamber, Raw Material feeding region, Smearing platform, Choppers, Sand feeding, Sand Transport system,Curing Zone,Infrared heating, Induction heating, Infrared camera, Thickness measuring, Saw unit, Buffer Resin system, Catalyst system, Pipe landing system, Power Distribution and control system including Software.
