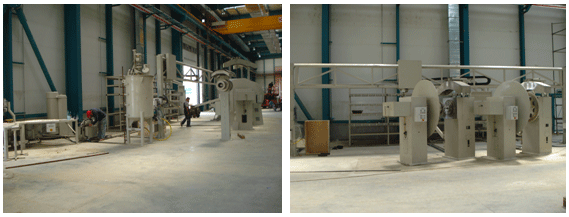

The couplings of the pipes are produced in the Coupling Production Unit that is composed of Coupling Winding Units, Feeding System and the Coupling Grinder.




The coupling mould of the related coupling is placed on the coupling winding machine.




The couplings produced are wound on coupling moulds which are first covered with special designed EPDM gaskets. As the all inner surface of the coupling is completely coated with EPDM, this ensures perfect tightness of the coupling even at high pressures.





The roving from the resin applicator is fed to the mould from the Coupling Winding System that can serve up to five Coupling Winding Stations.

After removed from the mould, the finished coupling is grinded at the Coupling Grinding Machine before it is transferred to the Coupling Installation Unit or to the stockyard.
